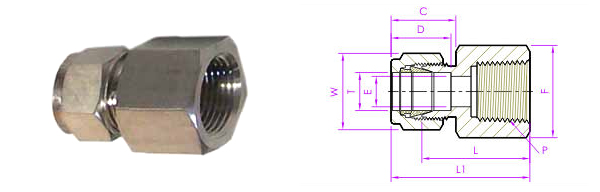

| Female Connector |
| |
| Fractional Tube X NPT (F) |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT-ØT(INCHES) |
NPT FEMALE PIPE SIZE P |
Ø E |
C |
BODY HEX F |
LY |
NUT HEX W |
D |
L1 |
| 1-FCD-1N |
-100-7-1 |
1FSC1N |
1/16 |
1/16 |
0.05 |
0.43 |
7/16 |
0.78 |
7/16 |
0.34 |
0.93 |
| 1-FCD-2N |
-100-7-2 |
1FSC2N |
1/16 |
1/8 |
0.05 |
0.43 |
9/16 |
0.81 |
7/16 |
0.34 |
0.96 |
| 2-FCD-2N |
-200-7-2 |
2FSC2N |
1/8 |
1/8 |
0.09 |
0.60 |
9/16 |
0.87 |
7/16 |
0.50 |
1.13 |
| 2 - FCD - 4N |
-200-7-4 |
2FSC4N |
1/8 |
1/4 |
0.09 |
0.60 |
3/4 |
1.06 |
7/16 |
0.50 |
1.32 |
| 3- FCD -2N |
-300-7-2 |
3FSC2N |
3/16 |
1/8 |
0.12 |
0.63 |
9/16 |
0.91 |
7/16 |
0.54 |
1.17 |
| 3 - FCD - 4N |
-300-7-4 |
3FSC4N |
3/16 |
1/4 |
0.12 |
0.64 |
3/4 |
1.09 |
1/2 |
0.54 |
1.35 |
| 4 - FCD - 2N |
- 400 -7 -2 |
4FSC2N |
1/4 |
1/8 |
0.19 |
0.70 |
9/16 |
0.94 |
9/16 |
0.60 |
1.23 |
| 4 - FCD - 4N |
- 400 -7- 4 |
4FSC4N |
1/4 |
1/4 |
0.19 |
0.70 |
3/4 |
1.12 |
9/16 |
0.60 |
1.41 |
| 4 - FCD - 6N |
- 400 -7 -6 |
4FSC6N |
1/4 |
3/8 |
0.19 |
0.70 |
7/8 |
1.19 |
9/16 |
0.60 |
1.48 |
| 4 - FCD - 8N |
- 400 -7 -8 |
4FSC8N |
1/4 |
1/2 |
0.19 |
0.70 |
1-1/16 |
1.38 |
9/16 |
0.60 |
1.67 |
| 5 - FCD - 2N |
- 500 -7 -2 |
5FSC2N |
5/16 |
1/8 |
0.25 |
0.73 |
9/16 |
0.97 |
5/8 |
0.64 |
1.26 |
| 5 -FCD - 4N |
- 500 -7 -4 |
5FSC4N |
5/16 |
1/4 |
0.25 |
0.73 |
3/4 |
1.16 |
5/8 |
0.64 |
1.45 |
| 5 - FCD -6N |
- 500 -7- 6 |
5FSC6N |
5/16 |
3/8 |
0.25 |
0.73 |
7/8 |
1.00 |
5/8 |
0.64 |
1.45 |
| 6 - FCD - 2N |
- 600 -7 -2 |
6FSC2N |
3/8 |
1/8 |
0.28 |
0.76 |
5/8 |
1 |
11/16 |
0.66 |
1.29 |
| 6 - FCD -4N |
- 600 -7 -4 |
6FSC4N |
3/8 |
1/4 |
0.28 |
0.76 |
3/4 |
1.19 |
11/16 |
0.66 |
1.48 |
| 6 - FCD -6N |
- 600 -7 -6 |
6FSC6N |
3/8 |
3/8 |
0.28 |
0.76 |
7/8 |
1.25 |
11/16 |
0.66 |
1.54 |
| 6 - FCD - 8N |
- 600 -7 -8 |
6FSC8N |
3/8 |
1/2 |
0.28 |
0.76 |
1-1/16 |
1.44 |
11/16 |
0.66 |
1.73 |
| 6 - FCD -12N |
- 600 -7 -12 |
6FSC12N |
3/8 |
3/4 |
0.28 |
0.76 |
1-5/16 |
1.59 |
11/16 |
0.66 |
1.88 |
| 8 - FCD - 4N |
- 810 -7 -4 |
8FSC4N |
1/2 |
1/4 |
0.41 |
0.86 |
13/16 |
1.19 |
7/8 |
0.90 |
1.59 |
| 8 - FCD - 6N |
- 810 -7 -6 |
8FSC6N |
1/2 |
3/8 |
0.41 |
0.86 |
7/8 |
1.25 |
7/8 |
0.90 |
1.65 |
| 8 - FCD - 8N |
- 810 -7 -8 |
8FSC8N |
1/2 |
1/2 |
0.41 |
0.86 |
1-1/16 |
1.44 |
7/8 |
0.90 |
1.84 |
| 8 - FCD - 12N |
- 810 -7 -12 |
8FSC12N |
1/2 |
3/4 |
0.41 |
0.86 |
1-5/16 |
1.5 |
7/8 |
0.90 |
1.90 |
| 10 - FCD - 6N |
-1010 -7 -6 |
10FSC6N |
5/8 |
3/8 |
0.50 |
0.86 |
15/16 |
1.25 |
1 |
0.96 |
1.65 |
| 10 - FCD - 8N |
-1010 -7 -8 |
10FSC8N |
5/8 |
1/2 |
0.50 |
0.86 |
1-1/16 |
1.44 |
1 |
0.96 |
1.84 |
| 10 - FCD - 12N |
- 1010 -7 -12 |
10FSC12N |
5/8 |
3/4 |
0.50 |
0.86 |
1-5/16 |
1.5 |
1 |
0.96 |
1.90 |
| 12 - FCD - 8N |
- 1210 -7 -8 |
12FSC8N |
3/4 |
1/2 |
0.62 |
0.86 |
1-1/16 |
1.44 |
1-1/8 |
0.96 |
1.84 |
| 12 - FCD - 12N |
- 1210 -7 -12 |
12FSC12N |
3/4 |
3/4 |
0.62 |
0.86 |
1-5/16 |
1.5 |
1-1/8 |
0.96 |
1.90 |
| 14 - FCD - 12N |
- 1410 -7 -12 |
14FSC12N |
7/8 |
3/4 |
0.72 |
0.86 |
1-5/16 |
1.56 |
1-1/4 |
1.02 |
1.96 |
| 16- FCD - 12N |
- 1610 -7 -12 |
16FSC12N |
1 |
3/4 |
0.88 |
1.04 |
1-3/8 |
1.62 |
1-1/2 |
1.23 |
2.10 |
| 16 - FCD - 16N |
- 1610 -7 -16 |
16FSC16N |
1 |
1 |
0.88 |
1.04 |
1-5/8 |
1.97 |
1-1/2 |
1.23 |
2.45 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,c,d is shown in the finger-tight position. |
|
Dimensions are for reference only and are subject to change |
|
npt thread as per ansi b 1.20.1. |
| |
All part numbers are proprietary of their respective owners |
|
|
