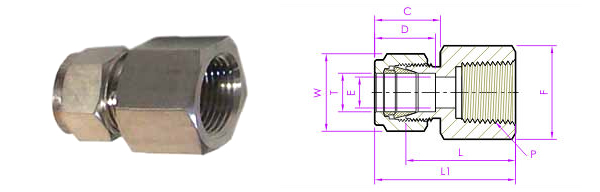

| Female Connector |
| |
| Metric Tibe X Iso Tap F |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT ØT(MM) |
ISOT FEMALE PIPE SIZE P |
BODY HEX F |
C |
Ø E |
L |
NUT HEX W |
D |
L1 |
| 6M-FCD-2IT |
-6MO-7-2 |
M6FSC1/8N |
6 |
1/8 |
14 |
17.7 |
4.8 |
23.9 |
14 |
15.3 |
31.3 |
| 6M-FCD-4IT |
-6MO-7-4 |
M6FSC1/4N |
6 |
1/4 |
19 |
17.7 |
4.8 |
28.4 |
14 |
15.3 |
35.8 |
| 6M-FCD-6IT |
-6MO-7-6 |
M6FSC3/8N |
6 |
3/8 |
22 |
17.7 |
4.8 |
30.2 |
14 |
15.3 |
37.6 |
| 6M-FCD-8IT |
-6MO-7-8 |
M6FSC1/2N |
6 |
1/2 |
27 |
17.7 |
4.8 |
35.1 |
14 |
15.3 |
42.5 |
| 8M-FCD-2IT |
-8MO-7-2 |
M8FSC1/8N |
8 |
1/8 |
16 |
18.6 |
6.4 |
24.6 |
16 |
16.2 |
32.1 |
| 8M-FCD-4IT |
-8MO-7-4 |
M8FSC1/4N |
8 |
1/4 |
19 |
18.6 |
6.4 |
29.5 |
16 |
16.2 |
37.0 |
| 8M-FCD-6IT |
-8MO-7-6 |
M8FSC3/8N |
8 |
3/8 |
22 |
18.6 |
6.4 |
31 |
16 |
16.2 |
38.5 |
| 8M-FCD-8IT |
-8MO-7-8 |
M8FSC1/2N |
8 |
1/2 |
27 |
18.6 |
6.4 |
31.0 |
16 |
16.2 |
43.3 |
| 10M-FCD-4IT |
-10MO-7-4 |
M10FSC1/4N |
10 |
1/4 |
19 |
19.5 |
7.9 |
30.2 |
19 |
17.2 |
37.8 |
| 10M-FCD-6IT |
-10MO-7-6 |
M10FSC3/8N |
10 |
3/8 |
22 |
19.5 |
7.9 |
31.8 |
19 |
17.2 |
39.4 |
| 10M-FCD-8IT |
-10MO-7-8 |
M10FSC1/2N |
10 |
1/2 |
27 |
19.5 |
7.9 |
36.6 |
19 |
17.2 |
44.2 |
| 12M-FCD-4IT |
-12MO-7-4 |
M12FSC1/4N |
12 |
1/4 |
22 |
22.0 |
9.5 |
30.2 |
22 |
22.8 |
40.3 |
| 12M-FCD-6IT |
-12MO-7-6 |
M12FSC3/8N |
12 |
3/8 |
22 |
22.0 |
9.5 |
31.8 |
22 |
22.8 |
41.9 |
| 12M-FCD-8IT |
-12MO-7-8 |
M12FSC1/2N |
12 |
1/2 |
27 |
22.0 |
9.5 |
36.6 |
22 |
22.8 |
46.7 |
| 12M-FCD-12IT |
-12MO-7-12 |
M12FSC3/4N |
12 |
3/4 |
35 |
22.0 |
9.5 |
38.9 |
22 |
22.8 |
49.0 |
| 15M-FCD-6IT |
-15MO-7-6 |
M15FSC3/8N |
15 |
3/8 |
25 |
22.0 |
11.9 |
31.8 |
25 |
24.4 |
41.9 |
| 15M-FCD-8IT |
-15MO-7-8 |
--------------- |
15 |
1/2 |
27 |
22.0 |
11.9 |
36.6 |
25 |
24.4 |
46.7 |
| 16M-FCD-8IT |
-16MO-7-8 |
M16FSC1/2N |
16 |
1/2 |
27 |
22.0 |
11.90 |
38.3 |
25 |
24.4 |
48.4 |
| 20M-FCD-8IT |
-20MO-7-8 |
M20FSC1/2N |
20 |
1/2 |
30 |
22.0 |
15.9 |
37.8 |
32 |
26.0 |
47.9 |
| 20M-FCD-12IT |
-20MO-7-12 |
M20FSC3/4N |
20 |
3/4 |
35 |
22.0 |
15.9 |
39.6 |
32 |
26.0 |
49.7 |
| 22M-FCD-12IT |
-22MO-7-12 |
M22FSC3/4N |
22 |
3/4 |
35 |
22.0 |
18.3 |
39.6 |
32 |
26.0 |
49.7 |
| 22M-FCD-16IT |
-22MO-7-16 |
--------------- |
22 |
1 |
41 |
22.0 |
18.3 |
47.8 |
32 |
26.0 |
57.9 |
| 25M-FCD-12IT |
-25MO-7-12 |
M25FSC3/4N |
25 |
3/4 |
35 |
26.5 |
21.8 |
41.1 |
38 |
31.3 |
53.4 |
| 25M-FCD-16IT |
-25MO-7-16 |
M25FSC1N |
25 |
1 |
41 |
26.5 |
21.8 |
50 |
38 |
31.3 |
62.3 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,c,d is shown in the finger-tight position. |
|
Dimensions are for reference only and are subject to change |
|
npt thread as per ansi b 1.20.1. |
| |
All part numbers are proprietary of their respective owners |
|
|
