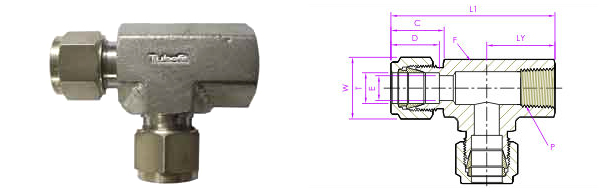

| Female Run Tee |
| |
| Fractional Tube XNPT(F) |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT-ØT(INCHES) |
NPT FEMALE PIPE SIZE P |
Ø E |
C |
BODY HEX F |
LY |
NUT HEX W |
D |
L1 |
| 2-FRTD-2N |
-200-3-2TFT |
2FRT2N |
1/8 |
1/8 |
0.09 |
0.60 |
9/16 |
0.75 |
7/16 |
0.50 |
1.72 |
| 3-FRTD-2N |
-300-3-2TFT |
3FRT2N |
3/16 |
1/8 |
0.09 |
0.60 |
9/16 |
0.75 |
7/16 |
0.50 |
1.76 |
| 4-FRTD-2N |
-400-3-2TFT |
4FRT2N |
1/4 |
1/8 |
0.19 |
0.70 |
9/16 |
0.75 |
9/16 |
0.60 |
1.81 |
| 4-FRTD-4N |
-400-3-4TFT |
4FRT4N |
1/4 |
1/4 |
0.19 |
0.70 |
11/16 |
0.88 |
9/16 |
0.60 |
2.05 |
| 5-FRTD-2N |
-500-3-2TFT |
5FRT2N |
5/16 |
1/8 |
0.19 |
0.60 |
5/8 |
0.75 |
5/8 |
0.60 |
1.92 |
| 6-FRTD-4N |
-600-3-6TFT |
6FRT4N |
3/8 |
1/4 |
0.28 |
0.76 |
13/16 |
0.88 |
13/16 |
0.66 |
2.11 |
| 8-FRTD-4N |
-810-3-4TFT |
8FRT4N |
1/2 |
1/4 |
0.19 |
0.70 |
7/8 |
1.13 |
7/8 |
0.60 |
2.56 |
| 8-FRTD-6N |
-810-3-6TFT |
8FRT26N |
1/2 |
3/8 |
0.41 |
0.86 |
7/8 |
0.88 |
7/8 |
0.90 |
2.30 |
| 8-FRTD-8N |
-810-3-8TFT |
8FRT8N |
1/2 |
1/2 |
0.41 |
0.86 |
1-1/16 |
1.12 |
7/8 |
0.90 |
2.69 |
| 10-FRTD-8N |
-1010-3-8TFT |
10FRT8N |
5/8 |
1/2 |
0.41 |
0.86 |
1-1/16 |
1.13 |
1.00 |
0.90 |
2.66 |
| 12-FRTD-12N |
-1210-3-12TFT |
12FRT12N |
3/4 |
3/4 |
0.62 |
0.86 |
1-3/8 |
1.25 |
1-1/8 |
0.96 |
3.01 |
| 14-FRTD-8N |
-1410-3-8TFT |
14FRT8N |
7/8 |
1/2 |
0.41 |
0.86 |
1-3/8 |
1.25 |
1-1/4 |
0.90 |
3.01 |
| 14-FRTD-12N |
-1412-3-12TFT |
14FRT12N |
7/8 |
3/4 |
0.62 |
0.86 |
1-3/8 |
1.25 |
1-1/4 |
0.96 |
3.01 |
| 16-FRTD-12N |
-1610-3-12TFT |
16FRT12N |
1 |
3/4 |
0.88 |
1.04 |
1-3/8 |
1.25 |
1-1/2 |
1.23 |
3.18 |
| 16-FRTD-16N |
-1610-3-16TFT |
16FRT16N |
1 |
1 |
0.88 |
1.04 |
1-11/16 |
1.50 |
1-1/2 |
1.23 |
3.61 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,c,d is shown in the finger-tight position. |
|
Dimensions are for reference only and are subject to change |
|
npt thread as per ansi b 1.20.1. |
| |
All part numbers are proprietary of their respective owners |
|
|
