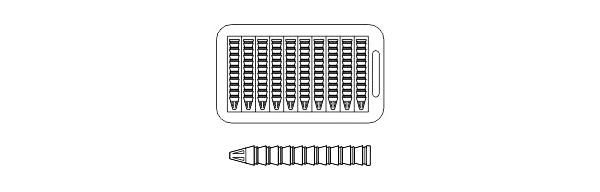

| Ferrule Pack |
| |
| Metric Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT ØT(MM) |
| 6M-FPD-10 |
-6MO-SETS-10 |
---------- |
6 |
| 8M-FPD-10 |
-8MO-SETS-10 |
---------- |
8 |
| 10M-FPD-10 |
-10MO-SETS-10 |
---------- |
10 |
| 12M-FPD-10 |
-12MO-SETS-10 |
---------- |
12 |
| 14M-FPD-10 |
-14MO-SETS-10 |
---------- |
14 |
| 16M-FPD-10 |
-16MO-SETS-10 |
---------- |
16 |
| 18M-FPD-10 |
-18MO-SETS-10 |
---------- |
18 |
| 20M-FPD-10 |
-20MO-SETS-10 |
---------- |
20 |
|
| |
| Note : |
 |
Dimensions are for reference only and are subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
