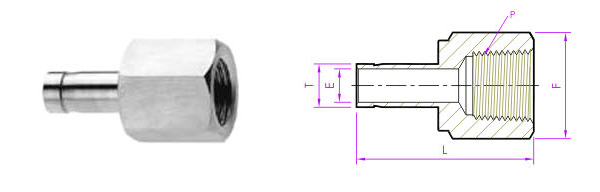

| Female Adapter |
| |
| Fractional Stub X NPT(F) |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
TUBE ODQT(INCHES) |
NPT FEMALE PIPE SIZE P |
Ø E |
BODY HEX F |
L |
| 1-FAD-2N |
-1-TA-7-2 |
1FA2N |
1/16 |
1/8 |
0.031 |
9/16 |
1.07 |
| 2-FAD-2N |
-2-TA-7-2 |
2FA2N |
1/8 |
1/8 |
0.09 |
9/16 |
1.24 |
| 2-FAD-4N |
-2-TA-7-4 |
2FA4N |
1/8 |
1/4 |
0.09 |
3/4 |
1.39 |
| 3-FAD-2N |
-3-TA-7-2 |
4FA2N |
3/16 |
1/8 |
0.116 |
9/16 |
1.25 |
| 3-FAD-2N |
-3-TA-7-3 |
4FA2N |
3/16 |
1/4 |
0.12 |
3/4 |
1.41 |
| 4-FAD-2N |
-4-TA-7-2 |
4FA2N |
1/4 |
1/8 |
0.19 |
9/16 |
1.3 |
| 4-FAD-4N |
-4-TA-7-4 |
4FA4N |
1/4 |
1/4 |
0.19 |
3/4 |
1.46 |
| 4-FAD-6N |
-4-TA-7-6 |
4FA6N |
1/4 |
3/8 |
0.19 |
7/8 |
1.55 |
| 4-FAD-8N |
-4-TA-7-8 |
4FA8N |
1/4 |
1/2 |
0.19 |
1-1/16 |
1.76 |
| 5-FAD-4N |
-5-TA-7-4 |
5FA4N |
5/16 |
1/4 |
0.25 |
3/4 |
1.48 |
| 5-FAD-6N |
-5-TA-7-6 |
5FA6N |
5/16 |
3/8 |
0.281 |
7/8 |
1.59 |
| 6-FAD-4N |
-6-TA-7-4 |
6FA4N |
3/8 |
1/4 |
0.28 |
3/4 |
1.50 |
| 6-FAD-6N |
-6-TA-7-6 |
6FA6N |
3/8 |
3/8 |
0.28 |
7/8 |
1.59 |
| 6-FAD-8N |
-6-TA-7-8 |
6FA8N |
3/8 |
1/2 |
0.28 |
1-1/16 |
1.84 |
| 8-FAD-4N |
-8-TA-7-4 |
8FA4N |
1/2 |
1/4 |
0.39 |
3/4 |
1.71 |
| 8-FAD-6N |
-8-TA-7-6 |
8FA6N |
1/2 |
3/8 |
0.39 |
7/8 |
1.79 |
| 8-FAD-8N |
-8-TA-7-8 |
8FA8N |
1/2 |
1/2 |
0.39 |
1-1/16 |
2.04 |
| 12-FAD-8N |
-12-TA-7-8 |
12FA8N |
3/4 |
1/2 |
0.59 |
1-1/16 |
2.08 |
| 12-FAD-12N |
-12-TA-7-12 |
12FA12N |
3/4 |
3/4 |
0.59 |
1-5/16 |
2.16 |
| 12-FAD-16N |
-12-TA-7-16 |
12FA16N |
3/4 |
1 |
0.59 |
1-5/8 |
2.30 |
| 16-FAD-12N |
-16-TA-7-12 |
16FA12N |
1 |
3/4 |
0.80 |
1-5/16 |
2.39 |
| 16-FAD-16N |
-16-TA-7-16 |
16FA16N |
1 |
1 |
0.80 |
1-5/8 |
2.53 |
|
| |
| Note : |
 |
The dimension is the minimum opening & fitting of this group may be back drilling to larger id at pipe thread or straight thread end. |
|
Dimensions are for reference only and subject to change. |
|
Npt thread as per ansi b 1.20.1. |
| |
