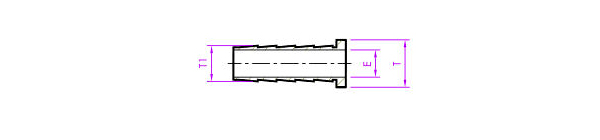

| Insert |
| |
| Fractional Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT-ØT(INCHES) |
Ø E |
ODT-ØT1(INCHES) |
| 3-ID-2 |
-305-2 |
3-TIZ(.125) |
3/16 |
0.09 |
1/8 |
| 4-ID-2 |
-405-2 |
4-TIZ(.125) |
1/4 |
0.09 |
1/8 |
| 4-ID-3 |
-405-3 |
4-TIZ(.188) |
1/4 |
0.11 |
3/16 |
| 4-ID-4 |
-405-4 |
4-TIZ(.188) |
1/4 |
0.14 |
3/16 |
| 5-ID-2 |
-505-2 |
5-TIZ(.125) |
5/16 |
0.09 |
1/8 |
| 5-ID-3 |
-505-3 |
5-TIZ(.188) |
5/16 |
0.12 |
3/16 |
| 5-ID-4 |
-505-4 |
5-TIZ(.250) |
5/16 |
0.19 |
1/4 |
| 6-ID-3 |
-605-3 |
6-TIZ(.188) |
3/8 |
0.12 |
3/16 |
| 6-ID-4 |
-605-4 |
6-TIZ(.250) |
3/8 |
0.19 |
1/4 |
| 8-ID-4 |
-815-4 |
8-TIZ(.250) |
1/2 |
0.19 |
1/4 |
| 8-ID-6 |
-815-6 |
8-TIZ(.375) |
1/2 |
0.31 |
3/8 |
| 10-ID-6 |
-1015-6 |
10-TIZ(.375) |
5/8 |
0.31 |
3/8 |
| 10-ID-8 |
-1015-8 |
10-TIZ(.500) |
5/8 |
0.44 |
1/2 |
| 12-ID-8 |
-1215-8 |
12-TIZ(.500) |
3/4 |
0.44 |
1/2 |
| 12-ID-10 |
-1215-10 |
12-TIZ(.625) |
3/4 |
0.56 |
5/8 |
| 16-ID-12 |
-1615-12 |
16-TIZ(.750) |
1 |
0.69 |
3/4 |
| 16-ID-14 |
-1615-14 |
16-TIZ(.875) |
1 |
0.81 |
7/8 |
|
| |
| Note : |
 |
The dimension is the minimum opening. |
|
Dimensions are for reference only and are subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
