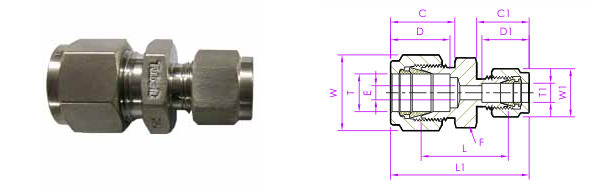

| Reducer Union |
| |
| Metric Tube X Metric Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
D1 |
ODT- ØT1 (MM) |
ODT ØT(MM) |
C |
BODY HEX F |
Ø E |
NUT HEX W |
D |
L |
L1 |
NUT HEX W1 |
C1 |
| 3M-RUD-2M |
-3MO-6-2M |
M3RUM2 |
12.9 |
2 |
3 |
15.3 |
35.3 |
1.7 |
11 |
12.9 |
22.1 |
11 |
11 |
15.3 |
| 6M-RUD-2M |
-6MO-6-2M |
M6RUM2 |
12.9 |
2 |
6 |
17.7 |
38.6 |
1.7 |
14 |
15.3 |
24.6 |
11 |
14 |
15.3 |
| 6M-RUD-3M |
-6MO-6-3M |
M6RUM3 |
12.9 |
3 |
6 |
17.7 |
38.6 |
2.4 |
14 |
15.3 |
24.6 |
11 |
14 |
15.3 |
| 6M-RUD-4M |
-6MO-6-4M |
M6RUM4 |
13.7 |
4 |
6 |
17.7 |
39.4 |
2.4 |
14 |
15.3 |
25.4 |
11 |
14 |
16.1 |
| 8M-RUD-6M |
-8MO-6-6M |
M8RUM6 |
15.3 |
6 |
8 |
18.6 |
42.3 |
4.8 |
16 |
16.2 |
27.4 |
14 |
16 |
17.7 |
| 10M-RUD-6M |
-10MO-6-6M |
M10RUM6 |
15.3 |
6 |
10 |
19.5 |
44.5 |
4.8 |
19 |
17.2 |
29.5 |
14 |
19 |
17.7 |
| 10M-RUD-8M |
-10MO-6-8M |
M10RUM8 |
16.2 |
8 |
10 |
19.5 |
45.1 |
6.4 |
19 |
17.2 |
30 |
16 |
19 |
18.6 |
| 12M-RUD-6M |
-12MO-6-6M |
M12RUM6 |
15.3 |
6 |
12 |
22.0 |
47.0 |
4.8 |
22 |
22.8 |
29.5 |
14 |
22 |
17.7 |
| 12M-RUD-8M |
-12MO-6-8M |
M12RUM8 |
16.2 |
8 |
12 |
22.0 |
47.8 |
6.4 |
22 |
22.8 |
30.2 |
16 |
22 |
18.6 |
| 12M-RUD-10M |
-12MO-6-10M |
M12RUM10 |
17.2 |
10 |
12 |
22.0 |
48.7 |
7.9 |
22 |
22.8 |
31 |
19 |
22 |
19.5 |
| 16M-RUD-10M |
-16MO-6-10M |
M16RUM10 |
17.2 |
10 |
16 |
22.0 |
49.5 |
7.9 |
25 |
24.4 |
31.8 |
19 |
25 |
19.5 |
| 16M-RUD-12M |
-16MO-6-12M |
M16RUM12 |
22.8 |
12 |
16 |
22.0 |
52.0 |
9.5 |
25 |
24.4 |
31.8 |
22 |
25 |
22.0 |
| 18M-RUD-12M |
-18MO-6-12M |
M18RUM12 |
22.8 |
12 |
18 |
22.0 |
53.5 |
9.5 |
27 |
24.4 |
33.3 |
22 |
30 |
22.0 |
| 25M-RUD-18M |
-25MO-6-18M |
M25RUM18 |
24.4 |
18 |
25 |
26.5 |
61.0 |
15.1 |
35 |
31.3 |
38.6 |
30 |
38 |
22.0 |
| 25M-RUD-25M |
-25MO-6-25M |
M25RUM25 |
31.3 |
25 |
25 |
26.5 |
80.1 |
15.9 |
46 |
31.6 |
46.2 |
38 |
50 |
26.5 |
| 30M-RUD-18M |
-30MO-6-18M |
M30RUM18 |
24.4 |
18 |
30 |
39.2 |
75.4 |
15.1 |
46 |
39.6 |
43.7 |
32 |
50 |
22 |
| 30M-RUD-20M |
-30MO-6-20M |
M30RUM20 |
26 |
20 |
30 |
39.2 |
75.4 |
15.9 |
46 |
39.6 |
43.7 |
32 |
50 |
22 |
| 30M-RUD-25M |
-30MO-6-25M |
M30RUM25 |
31.3 |
25 |
30 |
39.2 |
80.1 |
21.8 |
16 |
39.6 |
46.2 |
38 |
50 |
26.5 |
| 32M-RUD-18M |
-32MO-6-18M |
M32RUM18 |
24.4 |
18 |
32 |
41.6 |
77.8 |
15.1 |
46 |
42 |
44.7 |
30 |
50 |
22 |
| 32M-RUD-20M |
-32MO-6-20M |
M32RUM20 |
26 |
20 |
32 |
41.6 |
77.8 |
15.9 |
46 |
42 |
44.7 |
32 |
50 |
22 |
| 32M-RUD-25M |
-32MO-6-25M |
M32RUM25 |
31.3 |
25 |
32 |
41.6 |
82.3 |
21.8 |
46 |
42 |
47 |
38 |
50 |
26.5 |
| 38M-RUD-20M |
-38MO-6-20M |
M38RUM20 |
26 |
20 |
38 |
47.9 |
87.5 |
15.9 |
35 |
49.4 |
49.8 |
35 |
60 |
22 |
| 38M-RUD-25M |
-38MO-6-25M |
M38RUM25 |
31.3 |
25 |
38 |
47.9 |
92 |
21.8 |
55 |
49.4 |
52.1 |
38 |
60 |
26.5 |
| 38M-RUD-30M |
-38MO-6-30M |
M38RUM30 |
39.6 |
30 |
38 |
47.9 |
104.666 |
26.2 |
55 |
49.4 |
55.4 |
50 |
60 |
39.2 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,c,d,c1,c1 is shown in the finger-tight position. |
|
Dimensions are for reference only and subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
