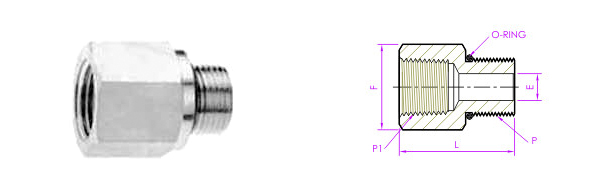

| SAE Adapter |
| |
| UNFM X NPTF |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
NPT FEMALE PIPE SIZE P1 |
Ø E |
HEX F |
SAE/MS MALE PIPE SIZE P |
L |
| 7U -PSA -4N |
4SAE - 7-4 |
4- 4 GOA |
1/4x18 |
0.2 |
3/4 |
7/16x20 |
1.19 |
| 9U -PSA -6N |
6SAE - 7-6 |
6- 6 GOA |
3/8x18 |
0.3 |
7/8 |
9/16x18 |
1.26 |
| 12U -PSA -8N |
8SAE - 7-8 |
8- 8 GOA |
1/2x14 |
0.39 |
1-1/16 |
3/4x16 |
1.5 |
| 17U -PSA -12N |
12SAE - 7-12 |
12- 12 GOA |
3/4x14 |
0.66 |
1-1/4 |
1-1/16x12 |
1.83 |
| 21U -PSA -16N |
16SAE - 7-16 |
16- 16 GOA |
1x11.5 |
0.88 |
1-5/8 |
1-5/16x12 |
1.88 |
|
|
