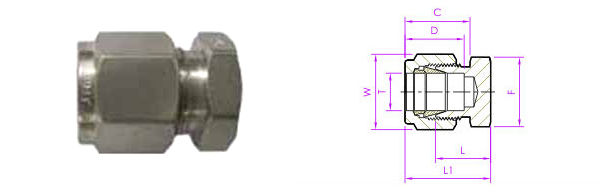

| Tube Cap |
| |
| Metric Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT ØT(MM) |
BODY HEX F |
C |
NUT HEX W |
L |
D |
L1 |
| 2M-TCD |
-2MO-C |
BLENM2 |
2 |
11 |
15.3 |
11 |
13.5 |
12.9 |
20.1 |
| 3M-TCD |
-3MO-C |
BLENM3 |
3 |
11 |
15.3 |
11 |
13.5 |
12.9 |
20.1 |
| 4M-TCD |
-4MO-C |
BLENM4 |
4 |
11 |
16.1 |
11 |
14.7 |
13.7 |
21.3 |
| 6M-TCD |
-6MO-C |
BLENM6 |
6 |
14 |
17.7 |
14 |
15.7 |
15.3 |
23.10 |
| 8M-TCD |
-8MO-C |
BLENM8 |
8 |
16 |
18.6 |
16 |
17 |
16.2 |
24.50 |
| 10M-TCD |
-10MO-C |
BLENM10 |
10 |
19 |
19.5 |
19 |
19 |
17.2 |
26.60 |
| 12M-TCD |
-12MO-C |
BLENM12 |
12 |
22 |
22.0 |
22 |
19 |
22.8 |
29.10 |
| 14M-TCD |
-14MO-C |
BLENM14 |
14 |
25 |
22.0 |
25 |
19.8 |
24.4 |
29.90 |
| 15M-TCD |
-15MO-C |
BLENM15 |
15 |
25 |
22.0 |
25 |
19.8 |
24.4 |
29.90 |
| 16M-TCD |
-16MO-C |
BLENM16 |
16 |
25 |
22.0 |
25 |
19.8 |
24.4 |
29.90 |
| 18M-TCD |
-18MO-C |
BLENM18 |
18 |
30 |
22.0 |
30 |
21.3 |
24.4 |
31.40 |
| 20M-TCD |
-20MO-C |
BLENM20 |
20 |
32 |
22.0 |
32 |
23.9 |
26.0 |
34.00 |
| 22M-TCD |
-22MO-C |
BLENM22 |
22 |
32 |
22.0 |
32 |
23.9 |
26.0 |
34.00 |
| 25M-TCD |
-25MO-C |
BLENM25 |
25 |
38 |
26.5 |
38 |
26.2 |
31.3 |
38.50 |
|
| |
| Note : |
 |
Dimension l1,c,d is shown in the finger-tight position. |
|
Dimensions are for reference only and are subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
