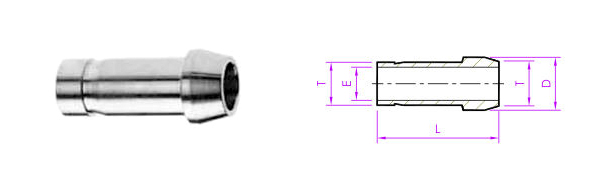

| Port Connector |
| |
| Two Metric Stub |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
ODT ØT(MM) |
Ø D |
Ø E |
L |
| 3M-PCD |
-3M1-PC |
PCM3 |
3 |
6.0 |
2.1 |
22.2 |
| 6M-PCD |
-6M1-PC |
PCM6 |
6 |
9.0 |
4.4 |
24.6 |
| 8M-PCD |
-8M1-PC |
PCM8 |
8 |
11.0 |
6.2 |
25.9 |
| 10M-PCD |
-10M1-PC |
PCM10 |
10 |
13.1 |
8.2 |
26.1 |
| 12M-PCD |
-12M1-PC |
PCM12 |
12 |
15.0 |
9.1 |
35.8 |
| 15M-PCD |
-15M1-PC |
---------- |
15 |
19.0 |
12.7 |
37.4 |
| 16M-PCD |
-16M1-PC |
PCM16 |
16 |
19.0 |
12.7 |
37.4 |
| 18M-PCD |
-18M1-PC |
PCM18 |
18 |
21.0 |
13.9 |
37.4 |
| 20M-PCD |
-20M1-PC |
---------- |
20 |
23.0 |
15.1 |
38.9 |
| 25M-PCD |
-25M1-PC |
---------- |
25 |
28.0 |
19.8 |
48.0 |
|
| |
| Note : |
 |
The dimension is the minimum opening. |
|
Dimensions are for reference only and are subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
