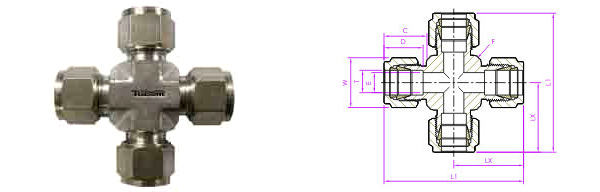

| Union Cross |
| |
| Fractional Tube X Fractional Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
LX |
ODT-ØT(INCHES) |
Ø E |
BODY HEX F |
C |
L |
D |
NUT HEX W |
L1 |
| 2-UCD |
-200-4 |
2ECR2 |
0.62 |
1/8 |
0.09 |
7/16 |
0.60 |
1.24 |
0.50 |
7/16 |
1.76 |
| 3-UCD |
-300-4 |
3ECR3 |
0.66 |
3/16 |
0.12 |
7/16 |
0.86 |
1.38 |
0.54 |
7/16 |
1.92 |
| 4-UCD |
-400-4 |
4ECR4 |
0.77 |
1/4 |
0.19 |
9/16 |
0.70 |
1.54 |
0.60 |
9/16 |
2.12 |
| 5-UCD |
-500-4 |
5ECR5 |
0.88 |
5/16 |
0.25 |
5/8 |
0.73 |
1.76 |
0.64 |
5/8 |
2.34 |
| 6-UCD |
-600-4 |
6ECR6 |
0.91 |
3/8 |
0.28 |
13/16 |
0.76 |
1.82 |
0.66 |
11/16 |
2.40 |
| 8-UCD |
-810-4 |
8ECR8 |
1.02 |
1/2 |
0.41 |
13/16 |
0.86 |
2.04 |
0.90 |
7/8 |
2.84 |
| 10-UCD |
-1010-4 |
10ECR10 |
1.03 |
5/8 |
0.50 |
1.00 |
0.86 |
2.06 |
0.96 |
1.00 |
2.86 |
| 12-UCD |
-1210-4 |
12ECR12 |
1.17 |
3/4 |
0.62 |
1-1/16 |
0.86 |
2.34 |
0.96 |
1-1/8 |
3.14 |
| 14-UCD |
-1410-4 |
14ECR14 |
1.36 |
7/8 |
0.72 |
1-3/8 |
0.86 |
2.72 |
1.02 |
1-1/4 |
3.52 |
| 16-UCD |
-1610-4 |
16ECR16 |
1.45 |
1 |
0.88 |
1-3/8 |
1.04 |
2.90 |
1.23 |
1-1/2 |
3.86 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,d is shown in the finger-tight position. |
|
Dimensions are for reference only and subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
