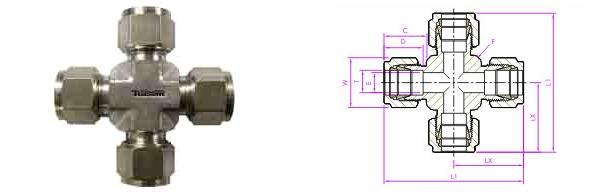

| Union Cross |
| |
| Metric Tube X Metric Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
LX |
ODT ØT(MM) |
Ø E |
BODY HEX F |
C |
NUT HEX W |
D |
L1 |
| 3M-UCD |
-3MO-4 |
ECRM3 |
22.3 |
3 |
2.4 |
11.1 |
15.3 |
12 |
12.9 |
44.7 |
| 4M-UCD |
-4MO-4 |
ECRM4 |
25.4 |
4 |
2.40 |
11.1 |
16.10 |
12 |
13.70 |
50.8 |
| 6M-UCD |
-6MO-4 |
ECRM6 |
27.0 |
6 |
4.8 |
14.2 |
17.7 |
14 |
15.3 |
53.9 |
| 8M-UCD |
-8MO-4 |
ECRM8 |
29.9 |
8 |
6.4 |
16 |
18.6 |
16 |
16.2 |
59.7 |
| 10M-UCD |
-10MO-4 |
ECRM10 |
33.5 |
10 |
7.9 |
19 |
19.5 |
19 |
17.2 |
67.0 |
| 12M-UCD |
-12MO-4 |
ECRM12 |
36.0 |
12 |
9.5 |
22.2 |
22.0 |
22 |
22.8 |
72.0 |
| 16M-UCD |
-16MO-4 |
ECRM16 |
37.0 |
16 |
12.7 |
25.4 |
22.0 |
25 |
24.4 |
74.0 |
| 18M-UCD |
-18MO-4 |
ECRM18 |
38.3 |
18 |
15.1 |
27 |
22.0 |
30 |
24.4 |
76.6 |
| 20M-UCD |
-20MO-4 |
---------- |
44.6 |
20 |
15.9 |
30 |
22.0 |
32 |
26.0 |
89.3 |
| 25M-UCD |
-25MO-4 |
---------- |
49.1 |
25 |
21.8 |
35 |
26.5 |
38 |
31.3 |
98.3 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,d is shown in the finger-tight position. |
|
Dimensions are for reference only and subject to change. |
| |
