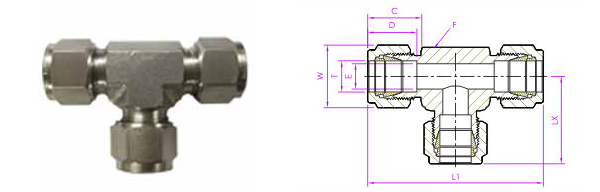

| Union Tee |
| |
| Fractional Tube X Fractional Tube |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
LX |
ODT-ØT(INCHES) |
Ø E |
BODY HEX F |
C |
D |
NUT HEX W |
L1 |
| 1-UTD |
-100-3 |
1ET1 |
0.70 |
1/16 |
0.05 |
1/2 |
0.43 |
0.34 |
5/16 |
1.40 |
| 2-UTD |
-200-3 |
2ET2 |
0.88 |
1/8 |
0.09 |
0.5 |
0.60 |
0.50 |
7/16 |
1.76 |
| 3-UTD |
-300-3 |
3ET3 |
0.96 |
3/16 |
0.12 |
0.5 |
0.63 |
0.54 |
0.5 |
1.92 |
| 4-UTD |
-400-3 |
4ET4 |
1.06 |
1/4 |
0.19 |
9/16 |
0.70 |
0.60 |
9/16 |
2.12 |
| 5-UTD |
-500-3 |
5ET5 |
1.17 |
5/16 |
0.25 |
9/16 |
0.73 |
0.64 |
5/8 |
2.34 |
| 6-UTD |
-600-3 |
6ET6 |
1.20 |
3/8 |
0.28 |
0.6875 |
0.76 |
0.66 |
0.6875 |
2.40 |
| 8-UTD |
-810-3 |
8ET8 |
1.42 |
1/2 |
0.41 |
13/16 |
0.86 |
0.90 |
7/8 |
2.84 |
| 10-UTD |
-1010-3 |
10ET10 |
1.53 |
5/8 |
0.50 |
7/8 |
0.86 |
0.96 |
1 |
3.06 |
| 12-UTD |
-1210-3 |
12ET12 |
1.57 |
3/4 |
0.62 |
1-1/16 |
0.86 |
0.96 |
1-1/8 |
3.14 |
| 14-UTD |
-1410-3 |
14ET14 |
1.76 |
7/8 |
0.72 |
1-3/8 |
0.86 |
1.02 |
1-1/4 |
3.52 |
| 16-UTD |
-1610-3 |
16ET16 |
1.93 |
1 |
0.88 |
1-3/8 |
1.04 |
1.23 |
1-1/2 |
3.86 |
|
| |
| Note : |
 |
The E dimension is the minimum opening. |
|
Dimension l1,d is shown in the finger-tight position. |
|
Dimensions are for reference only and subject to change. |
| |
All part numbers are proprietary of their respective owners |
|
|
