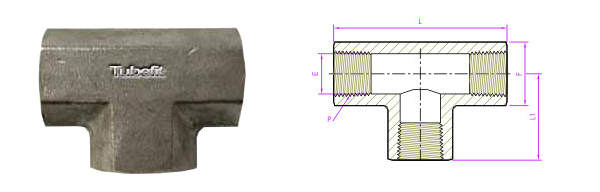

| Female Tee |
| |
| NPTF X NPTF X NPTF |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
NPT FEMALE PIPE SIZE P |
Ø E |
BODY HEX F |
L |
L1 |
| 1N-PFT |
---------- |
1-1-1 FT |
1/16 |
0.24 |
19/32 |
1.70 |
0.85 |
| 2N-PFT |
-2-T |
2-2-2FT |
1/8 |
0.34 |
19/32 |
1.70 |
0.85 |
| 4N-PFT |
-4-T |
4-4-4 FT |
1/4 |
0.45 |
13/16 |
1.96 |
0.98 |
| 6N-PFT |
-6-T |
6-6-6 FT |
3/8 |
0.57 |
7/8 |
2.44 |
1.22 |
| 8N-PFT |
-8-T |
8-8-8 FT |
1/2 |
0.71 |
1-1/16 |
2.36 |
1.18 |
| 12N-PFT |
-12-T |
12-12-12 FT |
3/4 |
0.91 |
1-1/4 |
2.68 |
1.34 |
| 16N-PFT |
-16-T |
16-16-16 FT |
1 |
1.15 |
13/4 |
3.62 |
1.81 |
|
| |
|
